TOP CORE FEATURES:
-

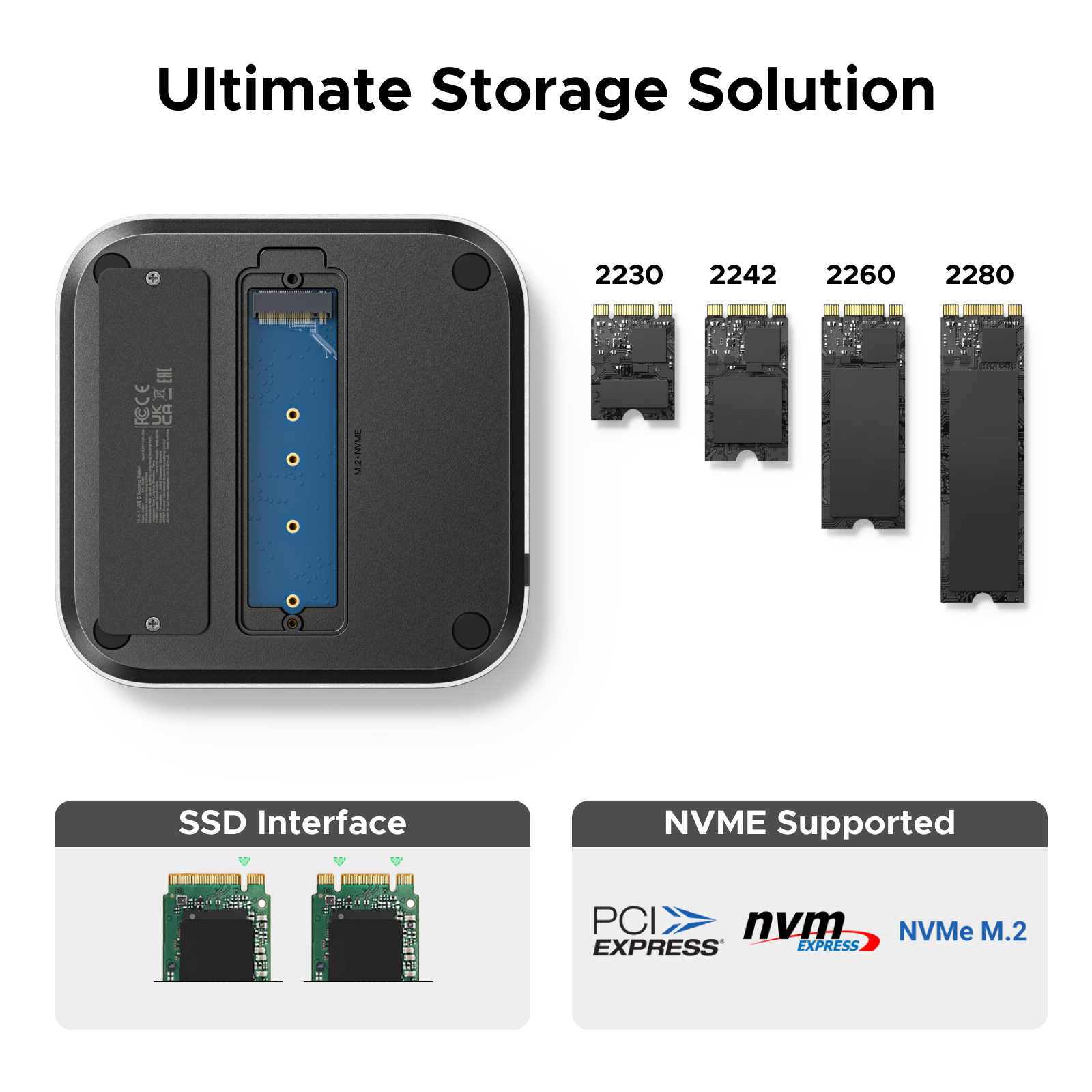

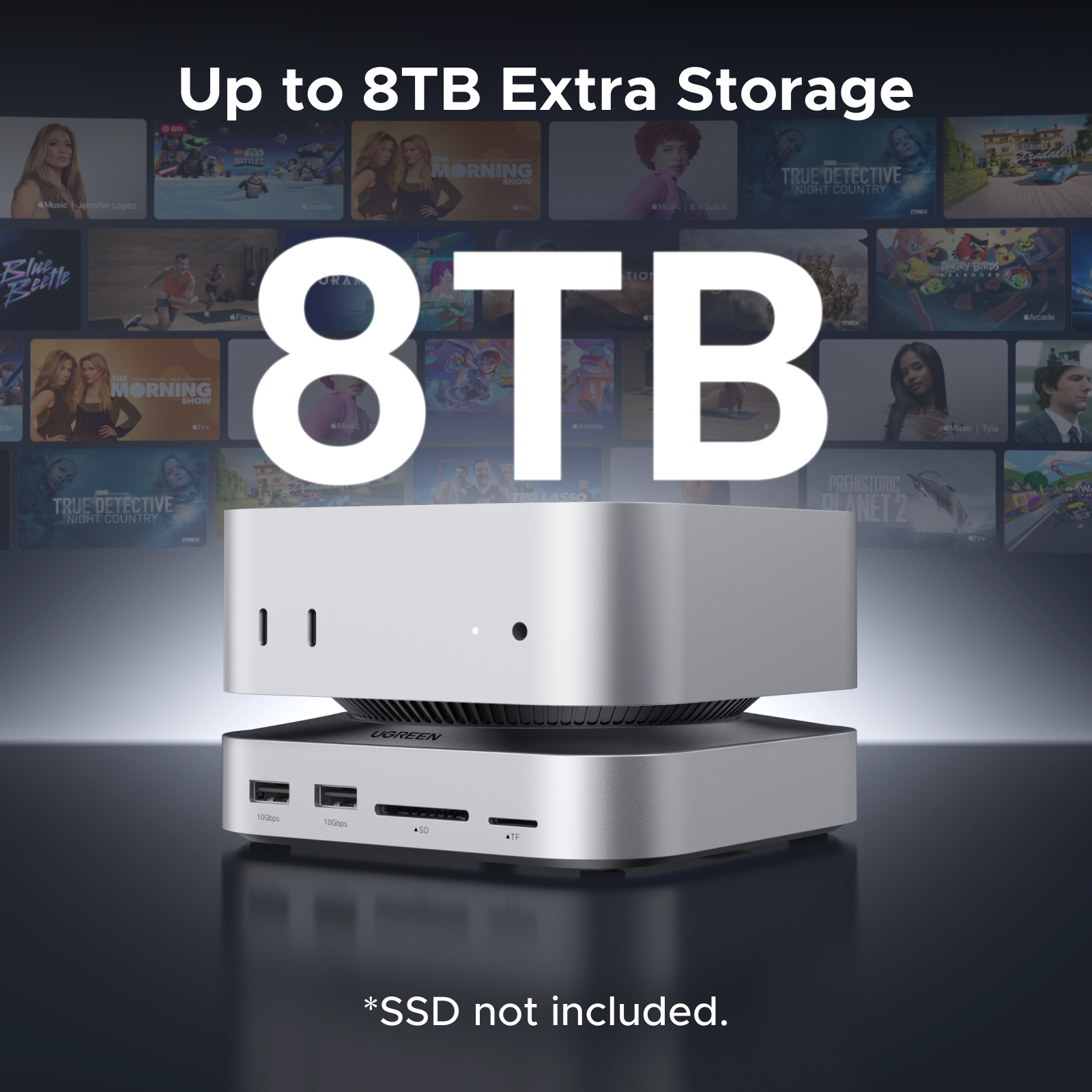

Hidden 10Gbps M.2 NVMe Storage Bay:
Integrates a discrete high-speed M.2 interface supporting NVMe protocols and PCIE 3.0X1. Effortlessly expand your local storage array with theoretical transfer velocities pushing up to 10Gbps for instant video editing and file rendering. -
Full-Spectrum 10Gbps Gen2 USB Grid:
Features a massive array of front-facing expansion ports: 3x USB-A (10Gbps) and 2x USB-C (10Gbps) running on the elite USB 3.2 Gen 2 protocol, supplemented by 2x USB-A (5Gbps) for daily keyboards, mice, and peripherals. -

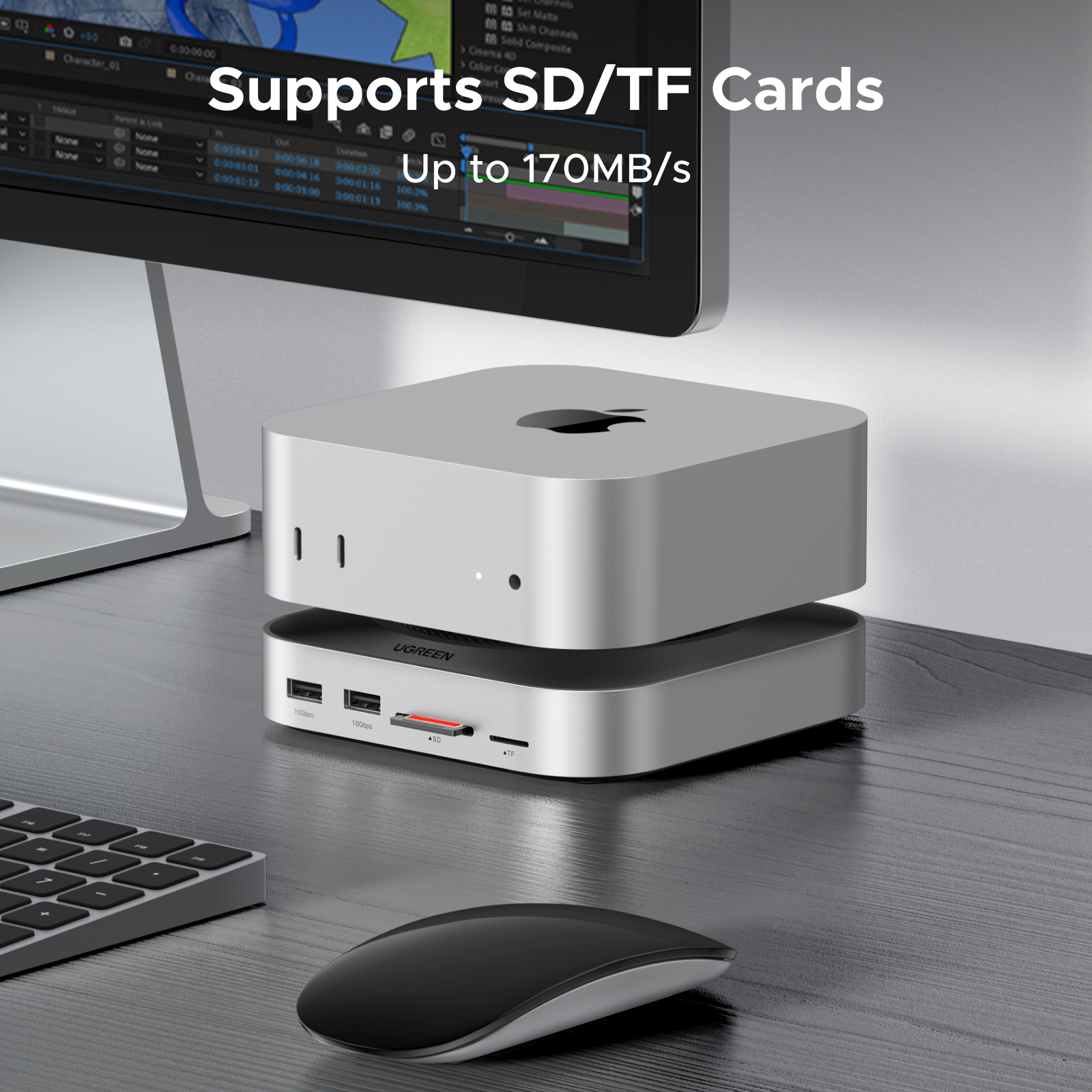

Concurrent SD/TF Dual-SIM Micro-Reading:
Complies with certified SD 3.0 industry standards, offering a swift transfer rate of up to 104 MB/s . Supports concurrent dual-card reading and writing, saving precious hours for content creators, vloggers, and designers. -

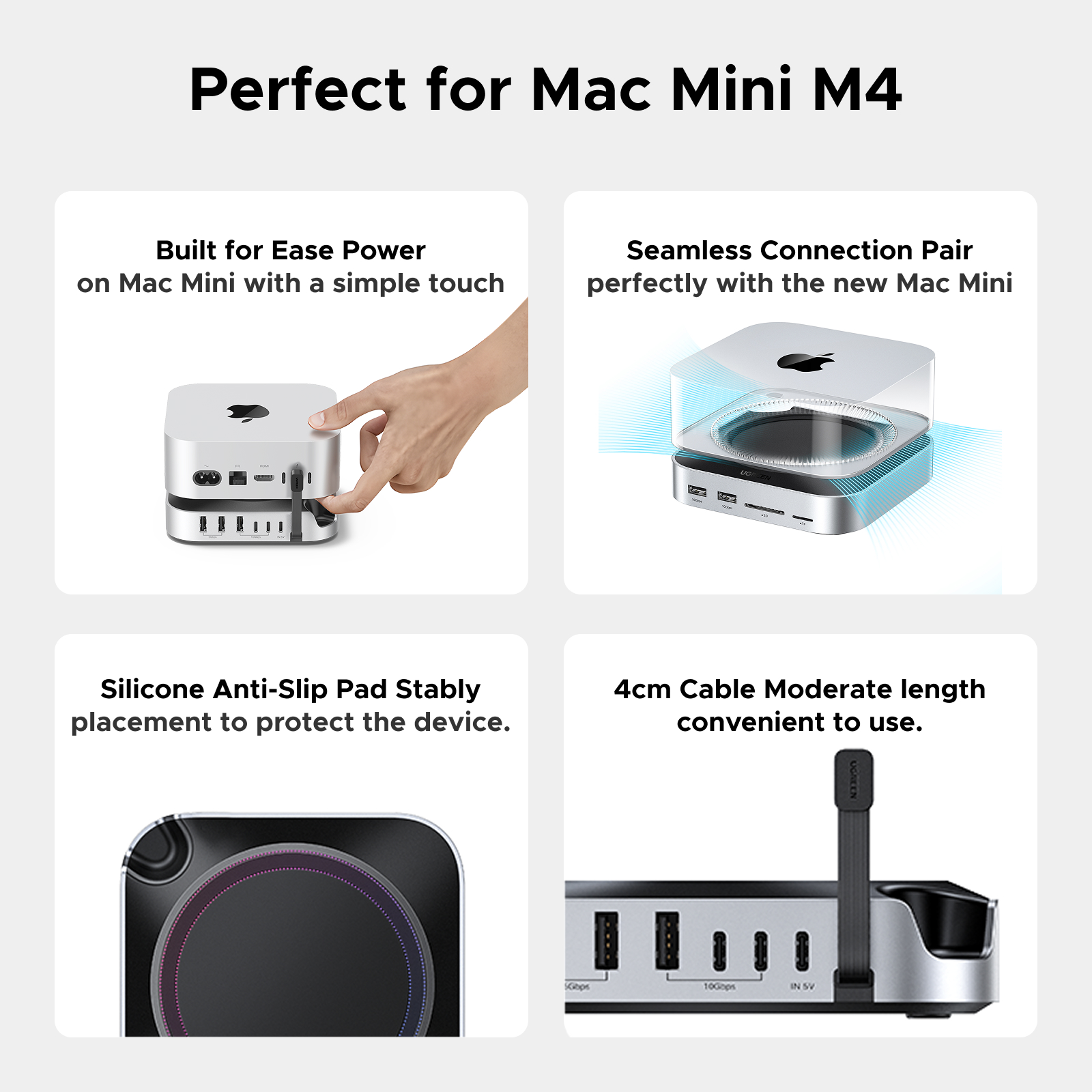

Custom Tailored Stealth Base Integration:
Includes a factory-integrated 4.45 cm ultra-short upstream USB-C cable . Designed to hide seamlessly behind or underneath the host machine, completely eliminating messy long cords cluttering your minimalist aesthetic desktop. -
️ Independent USB-C Power Auxiliary Link:
Engineered with an independent USB-C female motherboard power injection socket (Requires 5V ≥ 2A). Safely routes additional electricity to fully stabilize heavy simultaneous transfers when all 10 interfaces are working at full capacity. -
DETAILED TECHNICAL MATRIX:
-
Brand: UGREEN
-
Upstream Input Interface: 1x Full-Featured USB-C Male (USB 3.2 Gen2 10Gbps Protocol / Non-PD Host Charging)
-
Hard Drive Expansion Slot: 1x M.2 NVMe (Supports PCIE 3.0X1 / Backward Compatible with PCI-E 2.0/1.0)
-

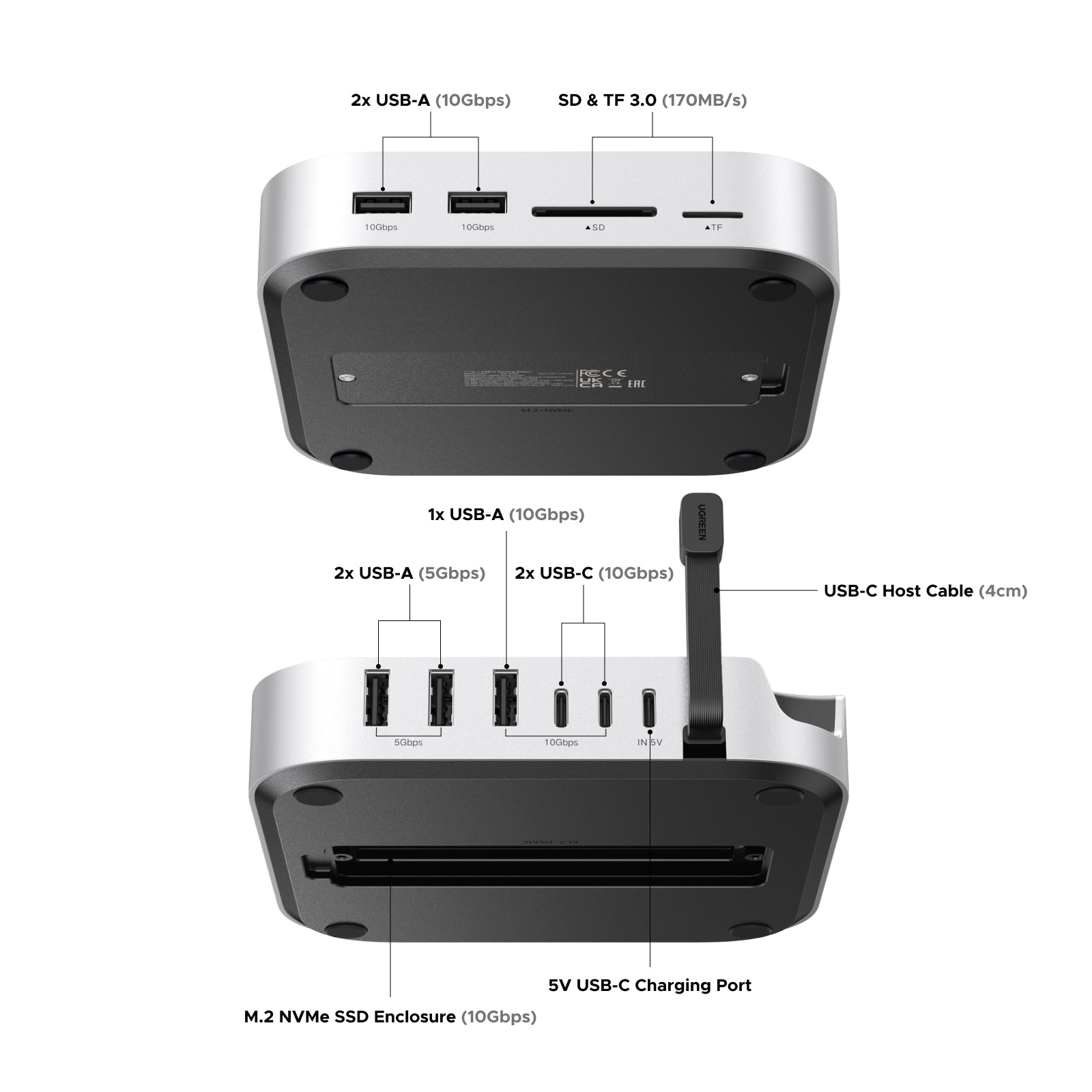

USB Ports Configuration:
-
3x USB-A Female Matrix (Screen-printed 10Gbps / Total Current Limit 2.5A)
-
2x USB-C Female Matrix (Screen-printed 10Gbps / Total Current Limit 2.5A- NOT for video output）
-
2x USB-A Female Matrix (Screen-printed 5Gbps / Total Current Limit 2.0A)
-
-
Flash Media Slots: 1x SD Slot + 1x TF Slot (SD 3.0 Standard / 104 MB/s Concurrent Dual-Read)
-
Power Requirements: Powered via Host Device or External USB-C Adapter (5V ≥ 2A)
-
Power Draw Metrics: No-load power ≈ 1.97W | 100% Full-load maximum consumption ≈ 9.5W
-
Thermals at Execution: High-efficiency heat dissipation. Full-load casing surface stays at an optimized 58°C under a 25°C ambient environment.
-
OS Support: 100% Plug-and-Play Driver-Free across Windows, macOS, Linux, and iOS .
