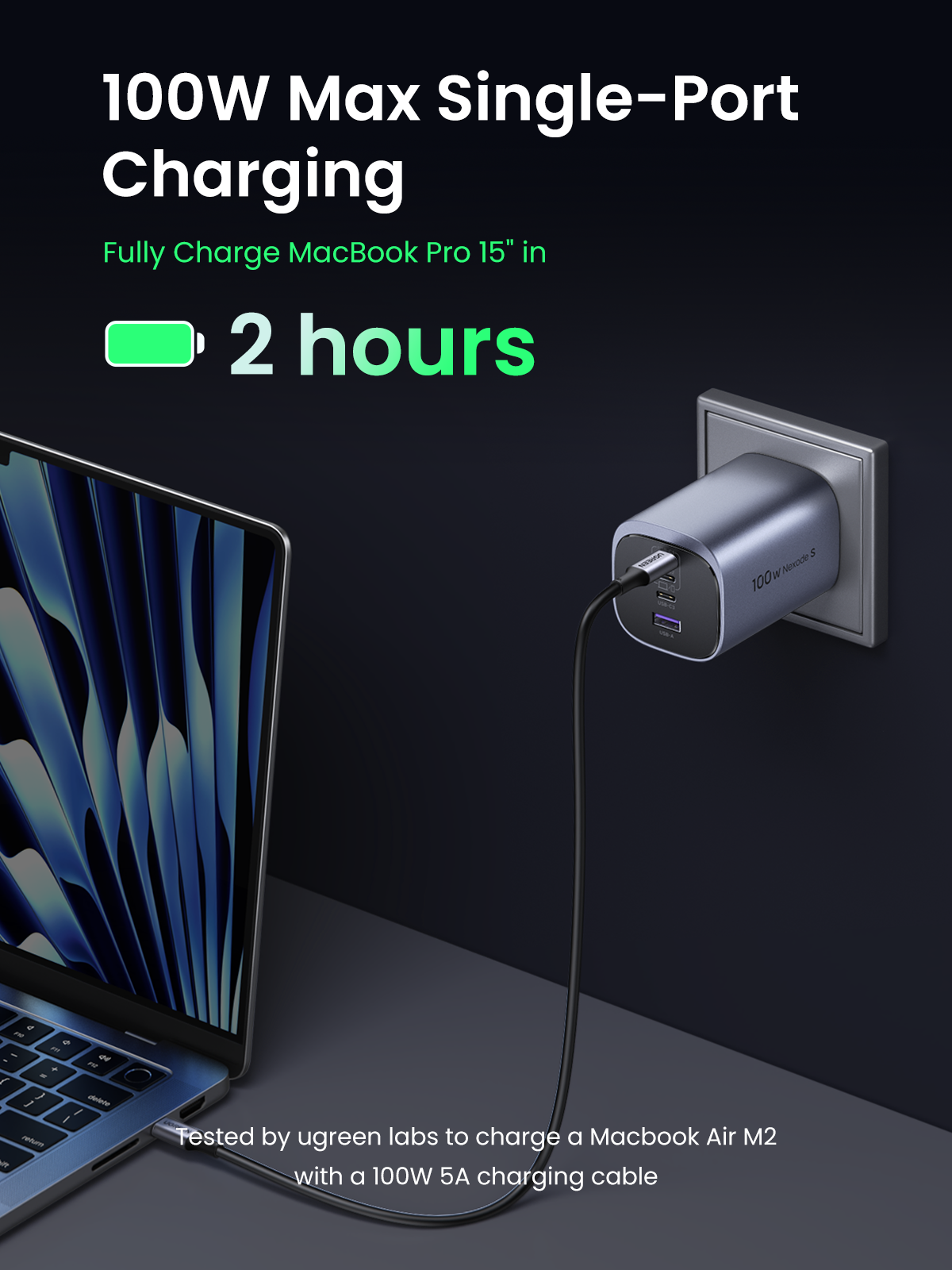

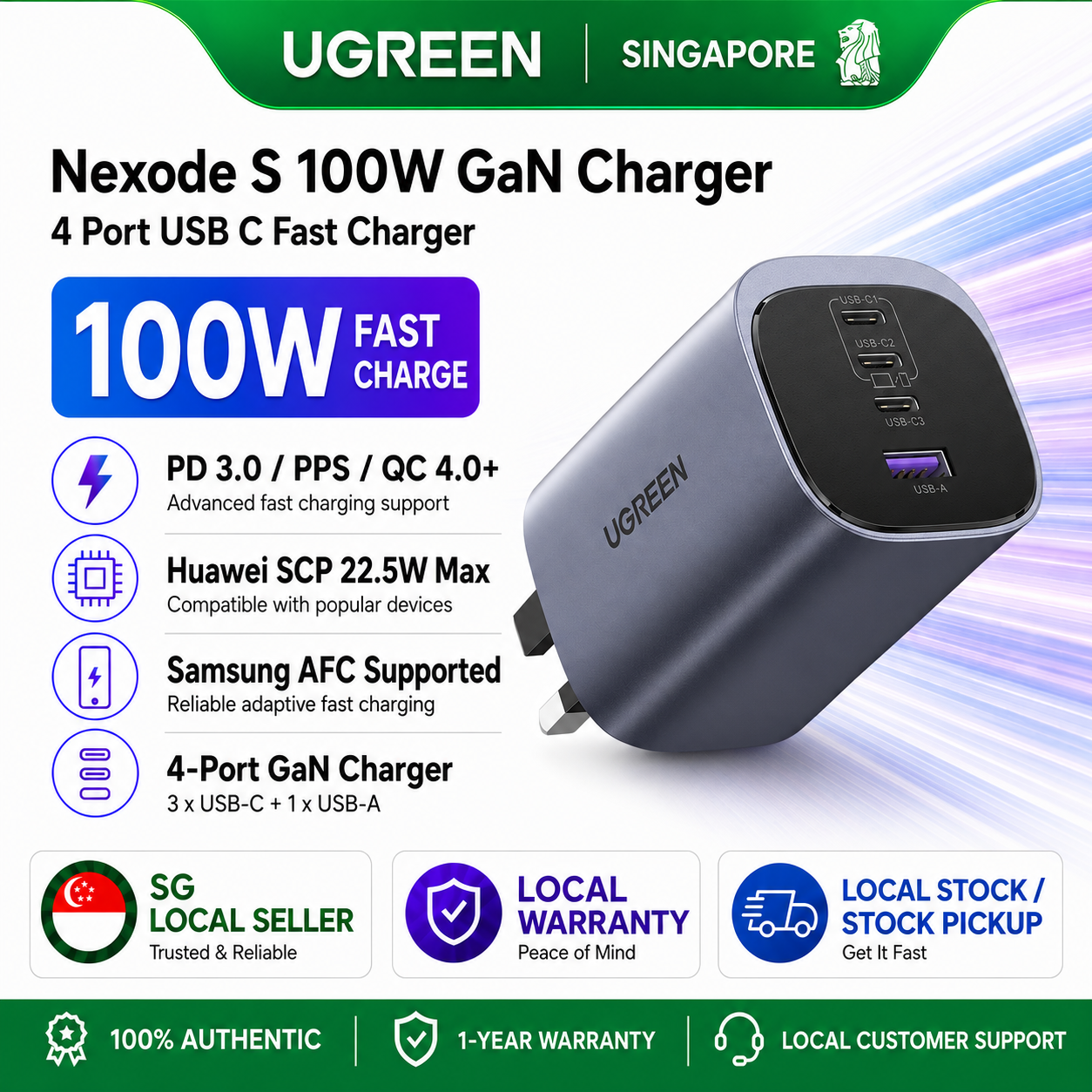

【100W Power Delivery Beast】 Connect to either USB-C1 or USB-C2 to pump a massive 100W of pure juice to power hungry laptops like the MacBook Pro.
-

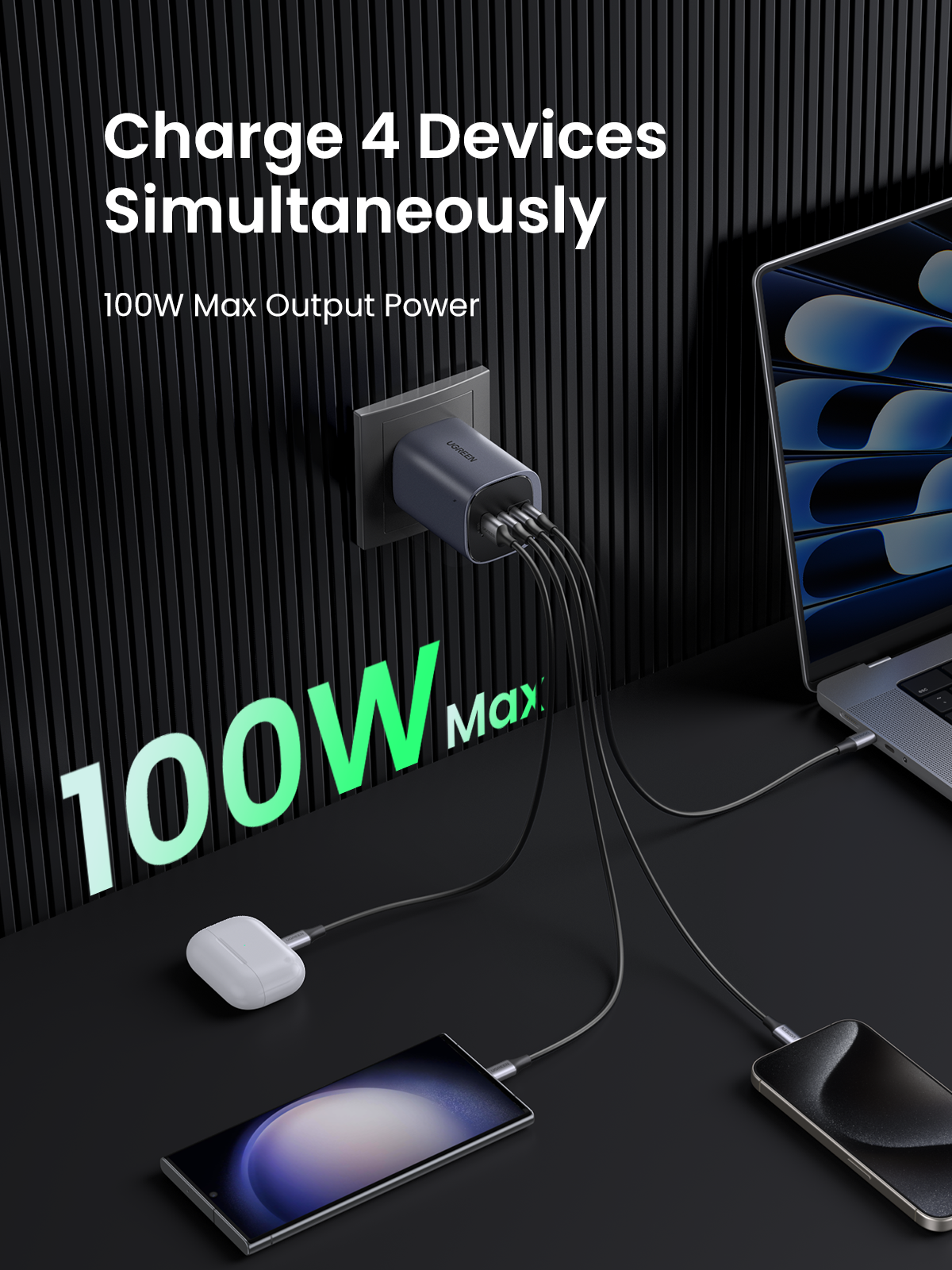

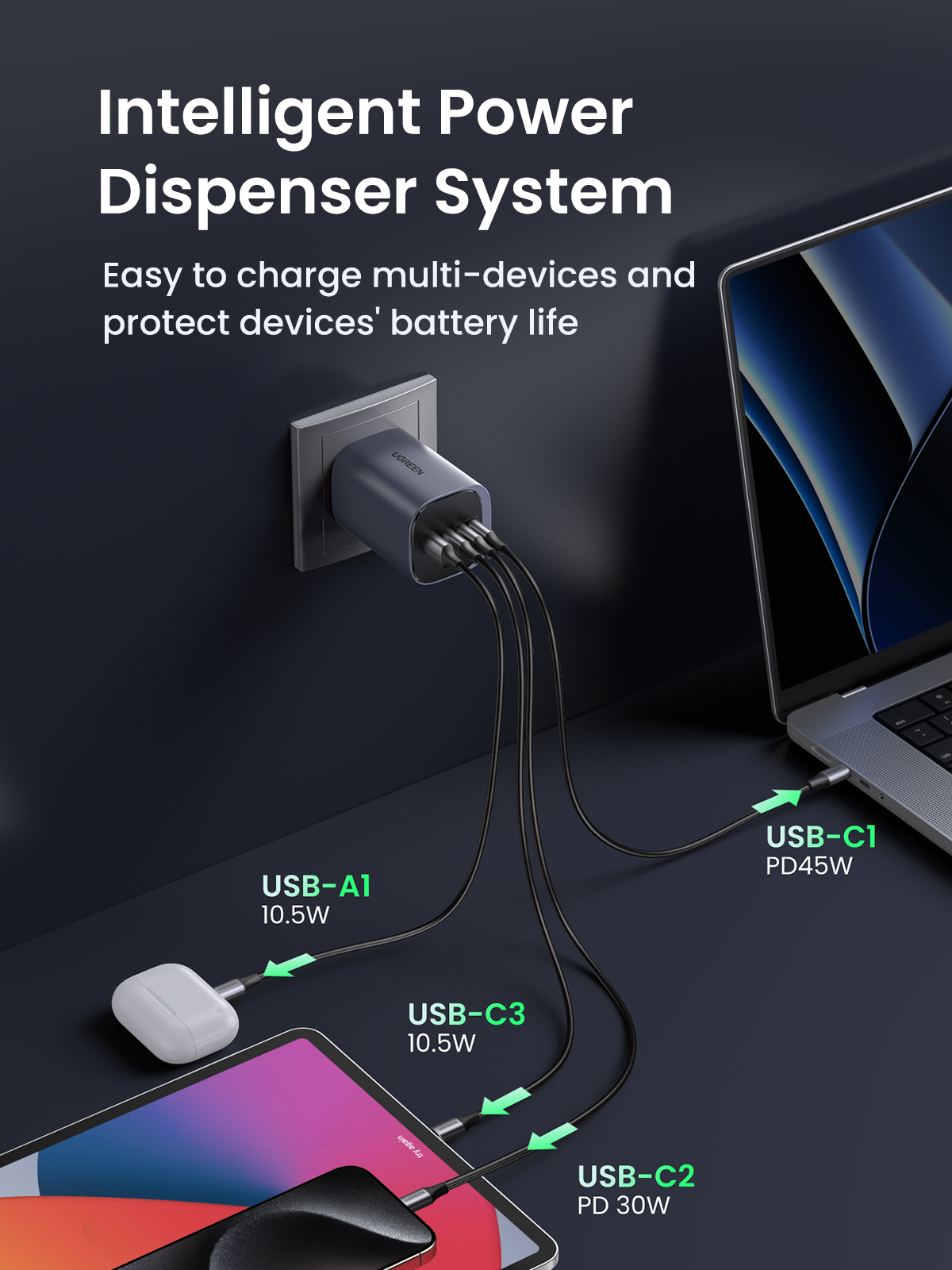

【4-in-1 Smart Multi-Device Allocation】 No more fighting over sockets. Intelligent power distribution dynamically delivers the optimal current to each plugged-in laptop, smartphone, or accessory.
-
【Full-Protocol Multi-Brand Integration】 Packed with PD 3.0, PPS, QC 4.0+, Huawei SCP (22.5W Max), and Samsung AFC. Fully fast-charges iPhone, Samsung Galaxy Ultra, Huawei, and Pixel devices.
-

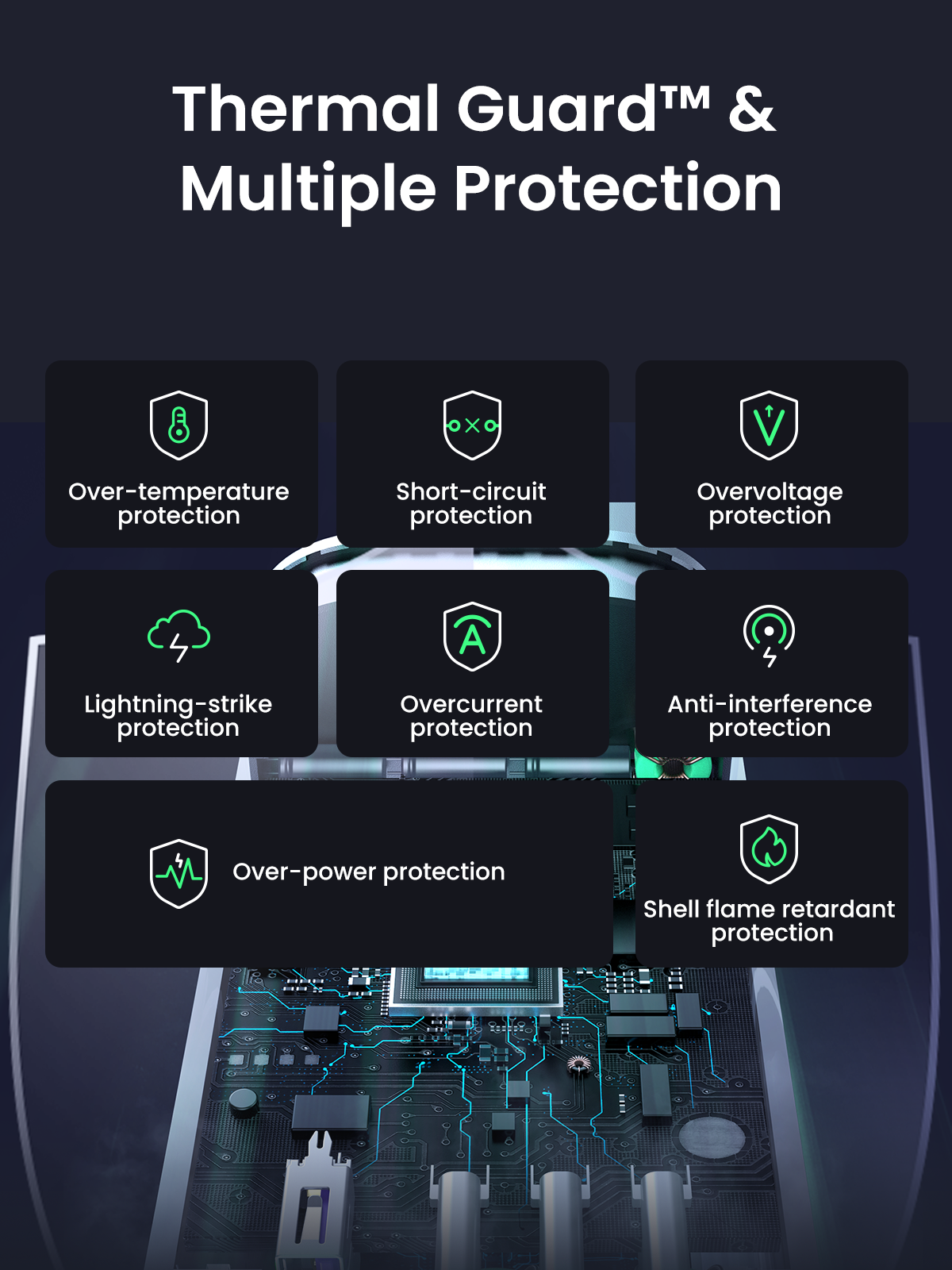

【Active 100°C Thermal Protection】 Rest easy with our advanced thermal monitoring. Built with V0 Fire-Retardant PC and safety algorithms that dynamically auto-derate power if internal parts hit 100°C , preventing over-heating and maintaining housing temperatures under 77°C.
-
【5000M High-Altitude Tested】 Designed for globetrotters. Fully compliant with 100-240V grids and certified for ultra-high altitudes up to 5000 meters , making it highly stable on cross-continental flights and high-altitude locations.
DETAILED TECHNICAL MATRIX:
-
Brand: UGREEN
-
AC Input Requirements: 100~240Vac 50/60Hz 2.3A Max (Global Grid Friendly)
-
Port Arrays: 3x USB-C Interfaces (16-Pin) + 1x USB-A Interface (4-Pin)
-

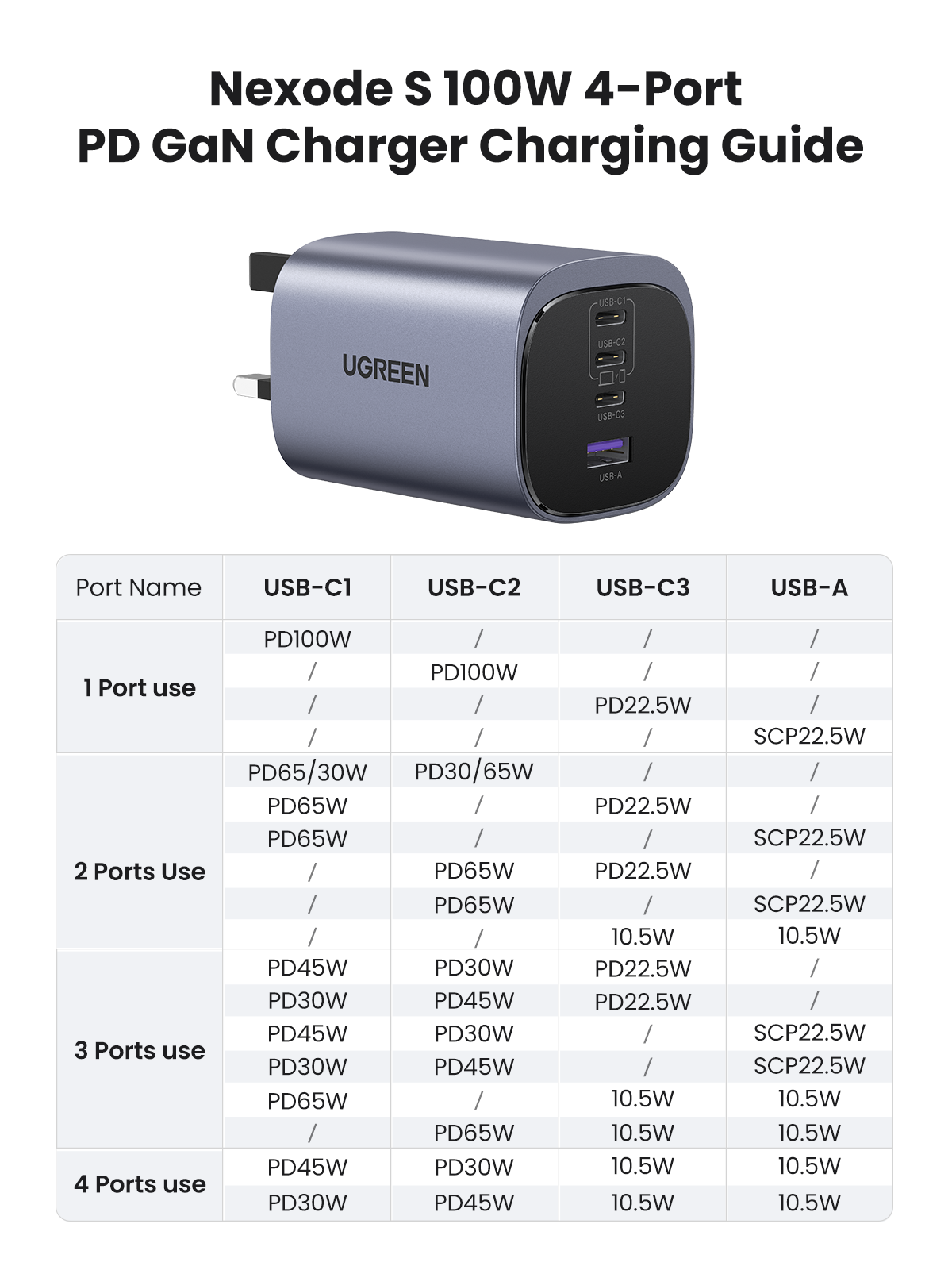

Single Port Output Profile:
-
USB-C1 / C2: 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A ( 100W Max ) | Supports PPS
-
USB-C3: 5V/3A, 9V/2.5A, 12V/1.87A, 15V/1.5A ( 22.5W Max )
-
USB-A (Dual Specs): 5V/3A, 9V/2A, 12V/1.5A, 4.5V/5A (SCP), 10V/2.25A (SCP) ( 22.5W Max )
-
-
Total Output Capability: 100W Max
-
No-Load Standby Power: ≤0.3W (Energy Star Standard)
-
Housing Thermal Cap: Under 77°C Max (At 25°C room ambient under 100% full workload)
-
Safety & Fireproof Rating: V0-Grade Fire-Retardant Polycarbonate (PC)
-

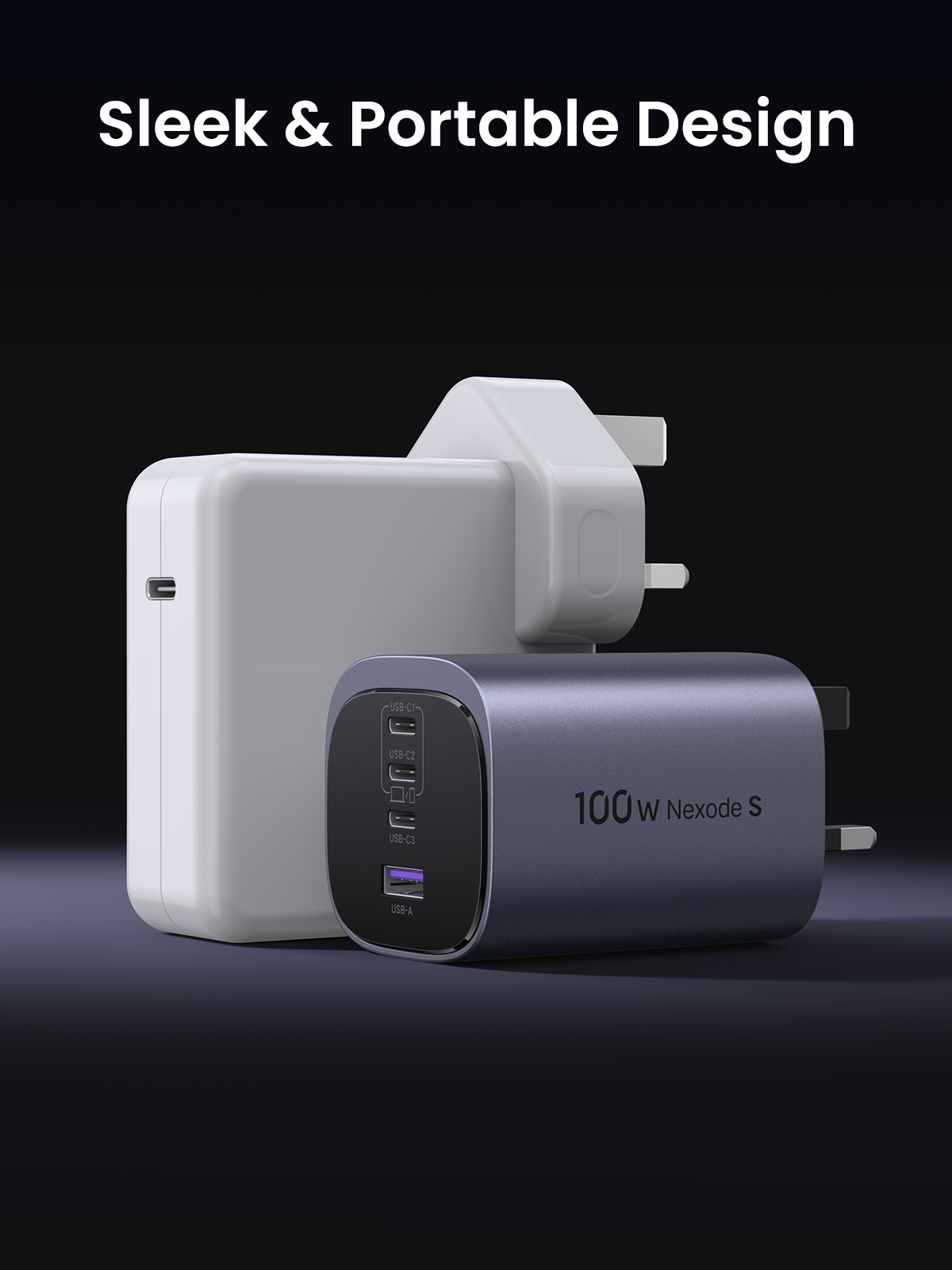

Physical Dimensions: Main Body (excluding pins): 69 x 69 x 35.6 mm (±1mm)
- Safety Mark 240906-11
